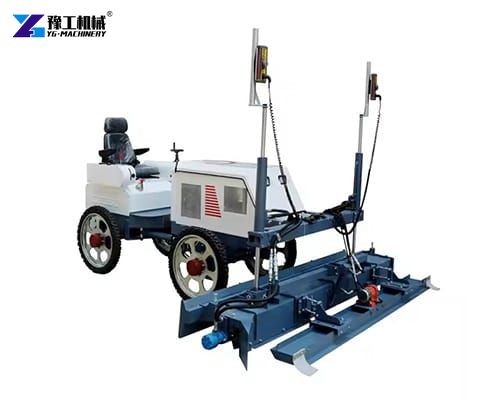

Concrete laser leveling machine is designed to improve the accuracy, efficiency, and consistency of concrete leveling operations on large construction sites. By combining laser-guided control, hydraulic leveling, and high-force vibration, the machine helps contractors achieve a more uniform concrete surface while reducing dependence on manual leveling methods. The specification range provided mainly includes the YG-CL300, YG-CL300A, and YG-ZP30 models, giving contractors options for different project requirements. The YG-CL300 and YG-CL300A use gasoline engines, while the YG-ZP30 is equipped with a Yanmar 4TNV94L diesel engine.
Parameters of the Concrete Laser Leveling Machine
| Model | YG-CL300 | YG-CL300A | YG-ZP30 |
| Engine model | Briggs & Stratton 38E3/LONCIN/Honda 690 (optional) | Briggs & Stratton 38E3/LONCIN/Honda 690 (optional) | Yanmar 4TNV94L |
| Engine type | Gasoline, air-cooled 4-stroke, twin-cylinder engine | Gasoline, air-cooled 4-stroke, twin-cylinder engine | Diesel |
| Engine power | 22KW/30ps | 22.8KW/23ps/31ps | 35.5KW/48hp |
| Fuel capacity | 20L (operation time is about 8 hours | 20L (operation time is about 8 hours | 100L |
| Hydraulic oil capacity | 37L | 35L | 150L |
| Laser transmitter | Swiss Leica/Tower transmitter (optional) | Swiss Leica/Tower transmitter (optional) | Danfoss |
| Laser receiver | Swiss Leica/Tower receiver (optional) | Swiss Leica/Tower receiver (optional) | American Tempo |
| Laser system control effect | Plane, slope, double slope (three-dimensional) |
Plane, slope, double slope (three-dimensional) |
German Mopar |
| Laser system control method | Microcomputer laser scanning | Microcomputer laser scanning | Flat, inclined or double slope (3D) |
| Paving method | Hydraulic stirring cage paving | Hydraulic stirring cage paving | Microcomputer laser scanning |
| Vibration method/excitation force | Hydraulic vibration/2000N | Hydraulic vibration/2000N | Hydraulic Cage Paving |
| Vibration plate width | 2500mm | 3000mm | Hydraulic motor |
| Leveling thickness | 50-300mm | 60-300mm | Flip up and down for easy cleaning, left and right switching, blades made of highly wear-resistant material, more durable |
| Travel drive | Reducer motor integrated | Reducer motor integrated | 6000mm |
| Travel speed | 0-4Km/h (speed adjustable) | 0-4Km/h (speed adjustable) | 3100mm |
| Travel tire | Solid anti-skid and anti-puncture tires (optional wide tires) | Solid anti-skid and anti-puncture tires (optional wide tires) | 100-450mm |
| Body size | 3250x2850x1320mm | 3300x3460x1650mm |
Laser-Guided Leveling System
The YG-CL300 and YG-CL300A concrete laser leveling machines are specified with microcomputer laser scanning and support plane, slope, and double-slope three-dimensional control. Optional Swiss Leica/Tower laser transmitters and receivers are available.
This configuration allows the operator to establish a precise reference plane or slope and use the laser system to guide the leveling process. For contractors working on large-area concrete projects, laser guidance can reduce the variation associated with manual leveling.
Powerful Vibration for Concrete Compaction
Leveling is only part of concrete finishing. Proper vibration is also important for helping consolidate freshly placed concrete.
The YG-CL300 and YG-CL300A concrete laser screed machine use hydraulic vibration with an excitation force of 2,000 N. Their hydraulic stirring cage paving system works together with the leveling and vibration functions to help distribute and consolidate concrete during the operation.
This combination is particularly useful when consistent concrete surface quality is required across a relatively large working area.
Main Features of the Concrete Laser Leveling Machine at a Glance
Three-Dimensional Laser Control
Plane, single-slope, and double-slope control give the machine flexibility for concrete surfaces that require more than simple horizontal leveling.
Wide Working Plate

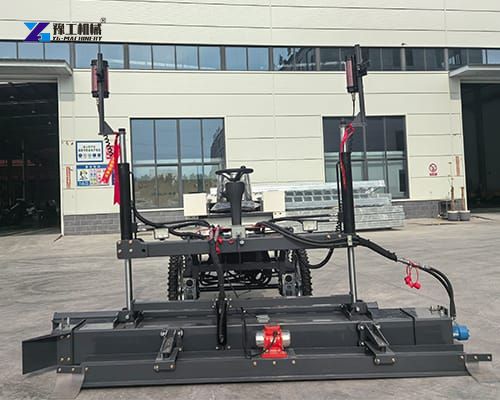

With a 2,500 mm vibration plate on the YG-CL300 and a 3,000 mm plate on the YG-CL300A, the machines can cover a substantial working width in each pass.
Adjustable Travel Speed
The YG-CL300 and YG-CL300A provide adjustable travel speeds from 0 to 4 km/h, allowing the operator to adapt machine movement to concrete conditions and site requirements.
Hydraulic Drive and Vibration
Hydraulic systems provide the working power for paving and vibration operations. The YG-CL300 and YG-CL300A are specified with 2,000 N hydraulic vibration excitation force.
Durable Tires
The YG-CL300 and YG-CL300A concrete laser leveling machine use solid anti-skid and anti-puncture tires, with wide-tire options available. This helps the machine maintain mobility on demanding construction surfaces.
Suitable Applications
- Industrial Floors and Warehouses: Large industrial floors require consistent elevation and surface quality. Laser-guided leveling can help contractors establish a uniform reference across extensive concrete areas.
- Logistics and Distribution Centers: Warehouse and logistics floors often cover thousands of square meters. A wide working plate and controlled travel speed can help improve productivity during concrete placement and leveling.
- Factory Floors: Factory slabs may require precise flatness and carefully controlled slopes. The three-dimensional laser control system of the YG-CL300 and YG-CL300A is suitable for projects where accurate elevation control is important.
- Roads, Yards, and Large Concrete Slabs: The machines can also be considered for large outdoor concrete surfaces, including yards and other slab construction projects where efficient leveling and vibration are required.
Advantages of Choosing a Concrete Laser Leveling Machine
- Improved Leveling Consistency
Laser-based reference control helps the operator maintain the required elevation throughout the working area, reducing variations that can occur with conventional manual methods. - Higher Working Efficiency
A wide leveling plate allows the machine to process a larger area with each pass. The YG-CL300A, for example, has a **3,000 mm vibration plate**, compared with 2,500 mm on the YG-CL300. - Reduced Dependence on Manual Work
Combining laser control, hydraulic paving, and vibration allows multiple concrete finishing operations to be integrated into one machine, potentially reducing labor requirements and improving workflow. - Flexible Configuration
The YG-CL300 and YG-CL300A support optional Swiss Leica/Tower laser transmitters and receivers, while different engine options are available for the gasoline-powered models. - Options for Different Project Scales
The three-model range includes compact gasoline-powered configurations and the larger diesel-powered YG-ZP30. Contractors can select a machine according to working requirements, site conditions, and desired productivity.
Why Consider a Laser Leveling Solution?
For contractors handling large concrete projects, choosing the right concrete laser leveling machine can make a significant difference to leveling consistency, working efficiency, and overall site productivity. Laser guidance combined with hydraulic paving and vibration provides a more integrated approach than traditional manual leveling methods.
The YG-CL300, YG-CL300A, and YG-ZP30 provide different configurations for contractors with different operational requirements. Before purchasing, it is important to match the machine to the required concrete thickness, working width, laser system, power source, and site conditions.
Are you looking for a concrete laser leveling machine for your construction project? Contact us with your requirements, and we will help you find the proper solution.
