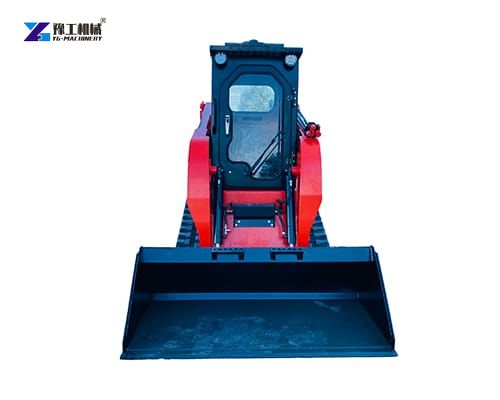

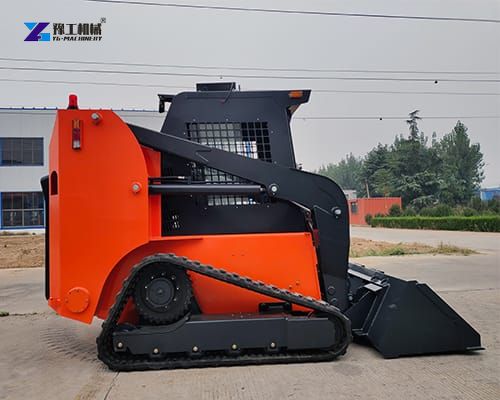

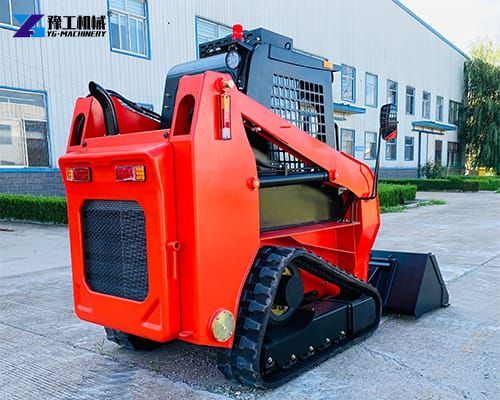

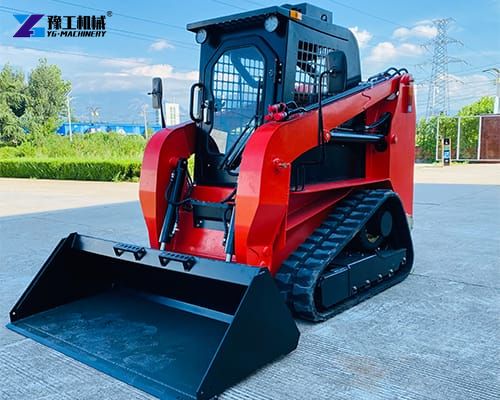

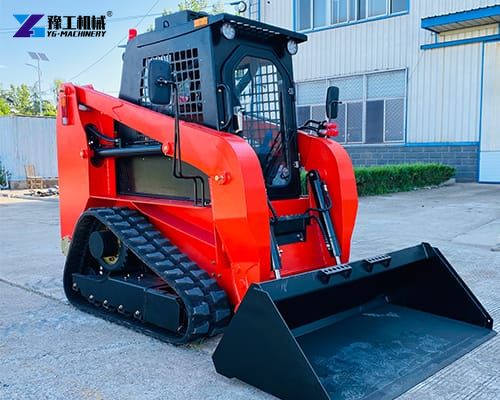

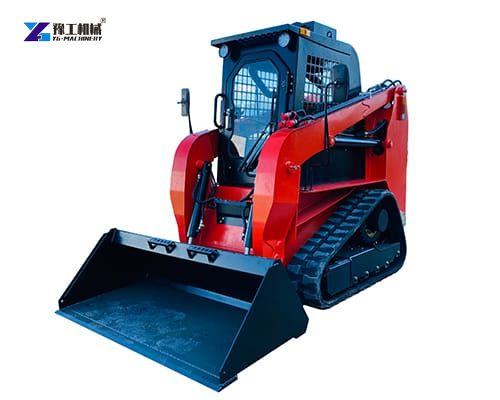

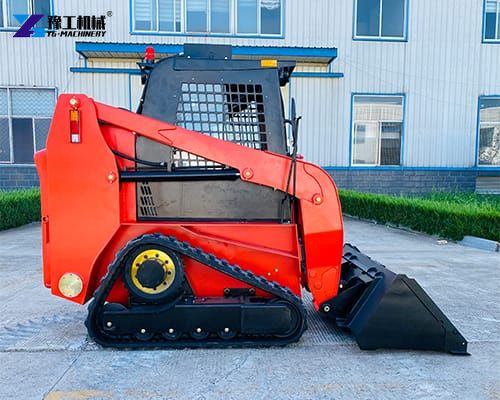

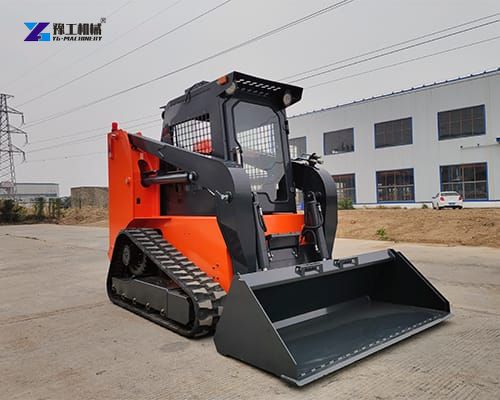

Small track skid steer is designed for customers who need reliable material handling performance in relatively confined working areas. The YGT50 and YGT65 models combine practical operating dimensions with rated power of 45 kw and 55 kw, respectively, making them suitable for construction, landscaping, agriculture, municipal work, and general material handling. With operating loads of 700 kg for the YGT50 and 1,000 kg for the YGT65, these two models offer different capacity levels to match a wide range of job requirements. People can choose the suitable one according to their real needs. For customers comparing a small crawler skid steer for daily professional use, the two models provide a practical balance between lifting capability, hydraulic output, working height, and machine size. In addition, we also support other models of tracked skid steers. If you are looking for this machine, please get in touch with us for more details.
Parameters of Small Track Skid Steer
| Model | YGT50 | YGT65 |
| Operating load (kg) | 700 | 1000 |
| Max Speed(km/h) | 10 | 12 |
| Rated flux (L/min) | 80 | 89 |
| Rated power (kw) | 45 | 55 |
| Fuel tank capacity (L) | 50 | 90 |
| Self-weight bucket (kg) | 4074 | 5024 |
| Bucket capacity (m³) | 0.4 | 0.5 |
| Overall operating height (mm) | 3660 | 3900 |
| Height to bucket hinge pin (mm) | 2730 | 2970 |
| Height to top of cab (mm) | 2349 | 2409 |
| Height to bottom of level bucket(mm) | 2500 | 2790 |
| Without bucket length(mm) | 2170 | 2450 |
| Overall length with bucket(mm) | 3150 | 3400 |
| Dumping angle at maximum height(° ) | 40 | 40 |
| Dumping height(mm) | 1990 | 2270 |
| Dumping reach(mm) | 1040 | 1120 |
| Rollback of bucket on ground(° ) | 30 | 30 |
| Rollback of bucket at full height(° ) | 100 | 100 |
| Wheelbase(mm) | 1230 | 1500 |
| Ground clearance(mm) | 230 | 200 |
| Angle of departure(° ) | 18.5 | 18.5 |
| Front turning radius without bucket(mm) | 1064 | 1230 |
| Front tuning radius(mm) | 1825 | 2010 |
| Rear tuning radius(mm) | 1264 | 1720 |
| Rear axle to bumper (mm) | 590 | 730 |
| Tread width (mm) | 1022 | 1482 |
| Width (mm) | 1422 | 1782 |
| Bucket width (mm) | 1727 | 1828 |
A Compact Loader Built for Everyday Work
Not every jobsite has enough room for large construction equipment. Residential construction, landscaping projects, farms, utility work, and maintenance jobs often require machines that can move efficiently through restricted areas.
The small track skid steer is designed for exactly these conditions. Its compact body makes it easier to work around buildings, narrow access points, and crowded jobsites, while its loading and hydraulic capabilities provide the performance needed for everyday material-handling tasks.
This combination of size and capability makes it a practical choice for businesses that want one versatile machine for multiple applications.
Features That Make The Track Skid Steer Stand Out
1. Compact and Easy to Maneuver
One of the biggest advantages of a small track skid steer is its ability to work where larger equipment may struggle. The compact design allows operators to move around construction sites, landscaping areas, farms, and other restricted workspaces with greater flexibility. This can help reduce unnecessary repositioning and make everyday operations more efficient.
2. Strong Hydraulic Performance
Hydraulic power is at the heart of a versatile skid steer. It determines how effectively the machine can operate its bucket and compatible attachments. The YG series is equipped with a hydraulic system designed to support demanding working operations, making the machine suitable for material handling, digging, grading, and other attachment-based tasks.
3. Useful Lifting and Loading Capability
A compact machine still needs to deliver meaningful working performance. It is designed to lift, transport, and unload materials efficiently, making it useful for moving soil, gravel, construction materials, landscaping supplies, and other loads. Its lifting and dumping configuration also makes it practical for loading materials into trucks or placing materials at different working heights.
4. Versatile Attachment Compatibility
A major benefit of choosing a mini track skid steer is versatility. With the right attachments, one machine can support many different operations. A bucket can be used for general material handling, while other attachments can expand the machine’s capabilities for digging, grading, cleaning, trenching, or landscaping.
Where Can We Use a Small Track Skid Steer?
1. Construction
From moving construction materials to preparing work areas, a compact skid steer can become a useful part of a construction fleet. Its small footprint is particularly valuable on residential and smaller commercial sites.
2. Landscaping
Landscaping contractors can use the machine for moving soil, mulch, gravel, and other materials. Its compact design also makes it suitable for working around gardens, buildings, driveways, and other finished areas.
3. Agriculture
On farms, a small track skid steer can assist with material handling, cleaning, transporting supplies, and general property maintenance. Its versatility allows operators to adapt the machine to changing daily tasks.
4. Utility and Maintenance Work
For utility installation, property maintenance, and road-related work, a compact loader can help with digging, backfilling, grading, and material movement when paired with suitable attachments.
Characteristics and Differences of YGT50 and YGT65: Which One Is Right for You?
1. Two Capacity Options for Different Jobs

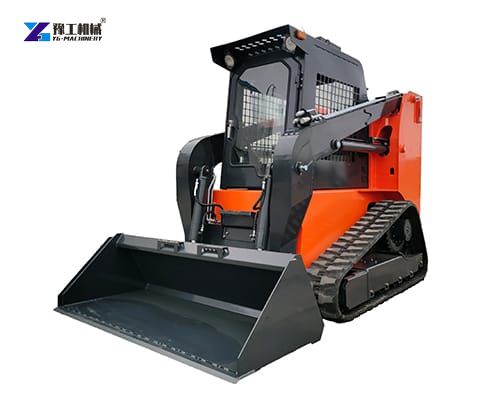

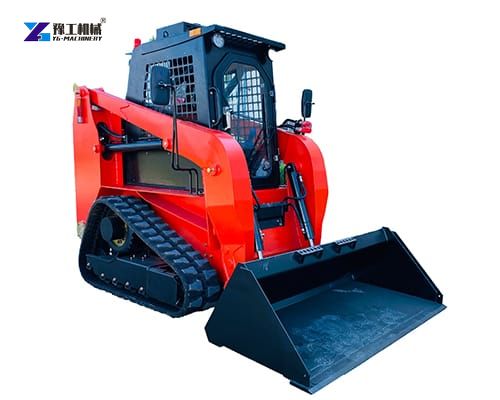

The YGT50 has an operating load of 700 kg and a bucket capacity of 0.4 m³. The larger YGT65 increases operating load to 1,000 kg and bucket capacity to 0.5 m³.
This gives buyers a straightforward choice: the YGT50 is suitable for lighter-duty applications and customers prioritizing compact operation, while the YGT65 provides greater capacity for more demanding material-handling tasks.
2. Strong Engine and Hydraulic Performance
Power is rated at 45 kW for the YGT50 and 55 kW for the YGT65. Their rated hydraulic flow is 80 L/min and 89 L/min, respectively.
This hydraulic performance is particularly valuable when the machine is used for bucket work and other hydraulic-powered attachments. Buyers looking for a small track skid steer can therefore consider the model according to both lifting requirements and attachment demands.
3. Practical Lifting and Dumping Dimensions
The YGT50 has an overall operating height of 3,660 mm, with a bucket hinge-pin height of 2,730 mm. Its dumping height is 1,990 mm, with a dumping reach of 1,040 mm.
The YGT65 provides greater working dimensions, with an overall operating height of 3,900 mm, a bucket hinge-pin height of 2,970 mm, a dumping height of 2,270 mm, and a dumping reach of 1,120 mm.
These dimensions make the machines well suited to loading materials into trucks, moving aggregates, handling soil, and performing routine site cleanup.
4. Compact Dimensions for Confined Work Areas
Compact dimensions are one of the most important considerations when choosing a small track skid steer. The YGT50 measures 2,170 mm without the bucket and 3,150 mm with the bucket, while the YGT65 measures 2,450 mm without the bucket and 3,400 mm with the bucket.
The machine widths are 1,422 mm for the YGT50 and 1,782 mm for the YGT65. This relatively compact configuration helps operators work in areas where maneuverability and access are important.
5. Designed for Maneuverability
The YGT50 has a front turning radius of 1,064 mm without the bucket, a front turning radius of 1,825 mm, and a rear turning radius of 1,264 mm. The YGT65 has corresponding figures of 1,230 mm, 2,010 mm, and 1,720 mm.
Both models have a 30° bucket rollback angle on the ground and a 100° rollback angle at full height, supporting controlled bucket positioning during loading and handling operations.
Choose the Suitable Crawler Skid Steer for Your Business
Choosing the right small track skid steer depends on your required operating load, working dimensions, hydraulic flow, bucket capacity, and job-site conditions. The YGT50 provides a compact 700 kg operating-load solution, while the YGT65 offers a higher-capacity 1,000 kg configuration for more demanding applications. For more models, please contact us.
Ready to find the right model for your project? Contact us today for detailed specifications, attachment options, pricing, availability, and professional recommendations. Send us your application requirements, and our team can help you select the most suitable track skid steer for your work.
